VSR 44mm Wastegate Gen 3
(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.
PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!

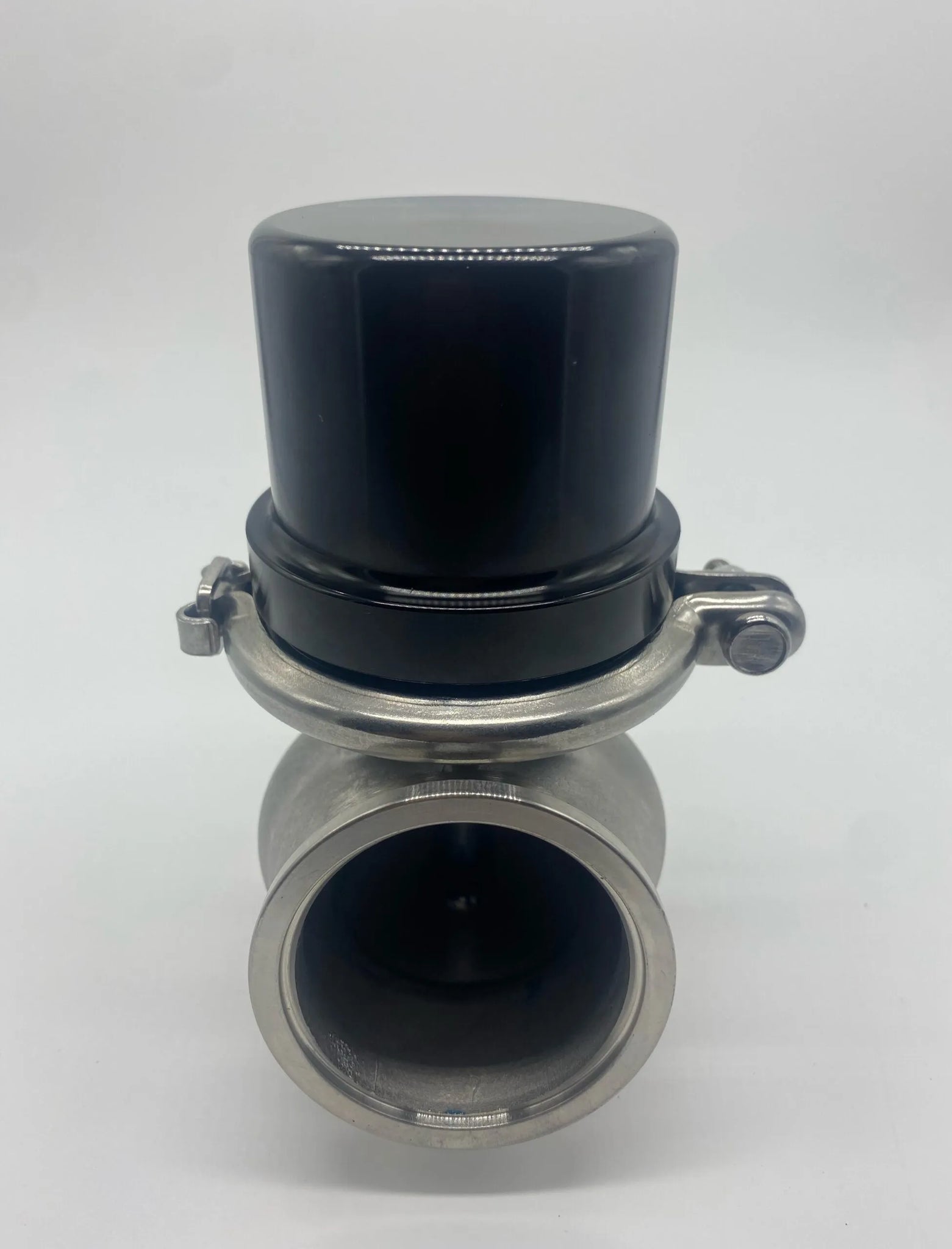

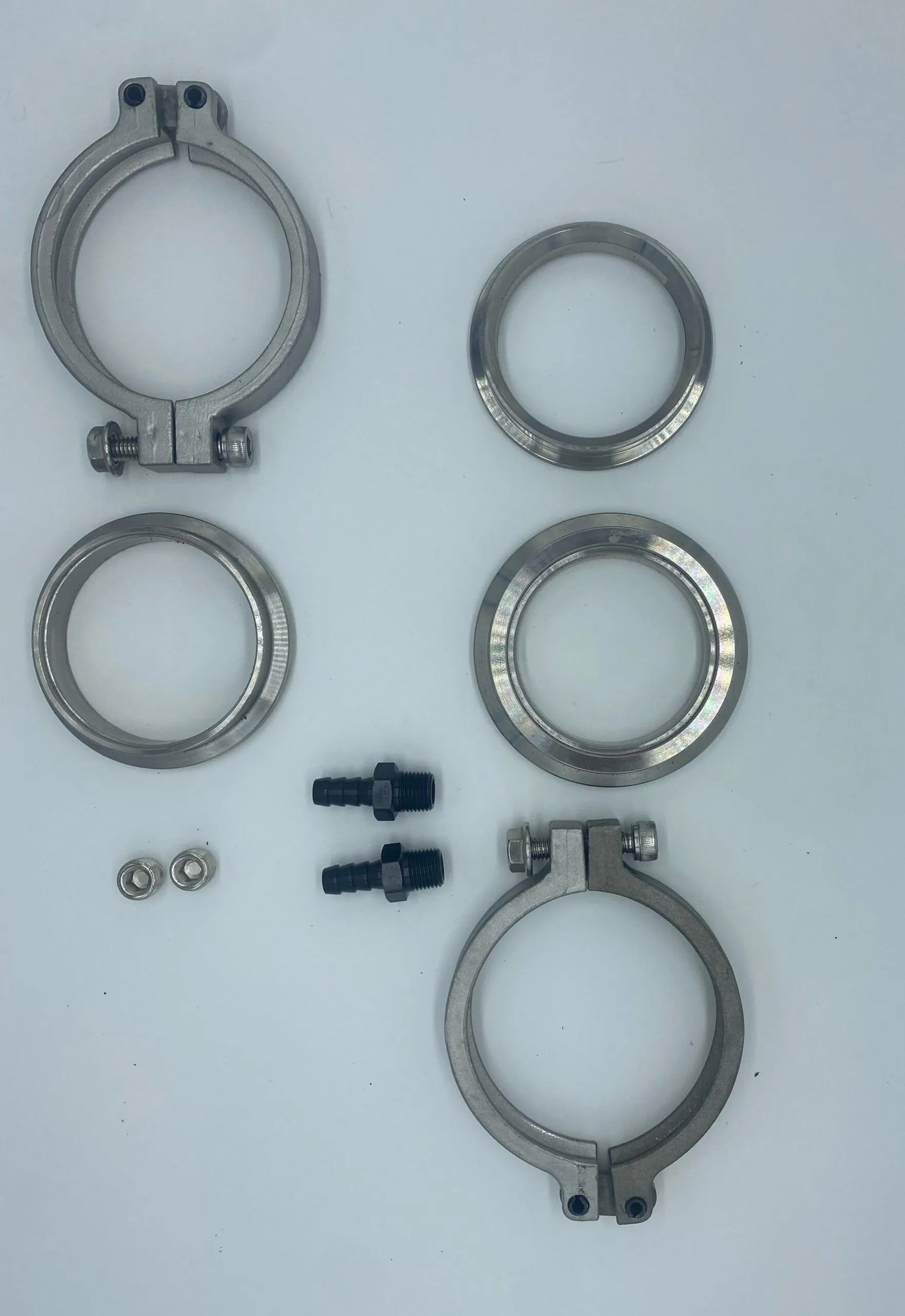

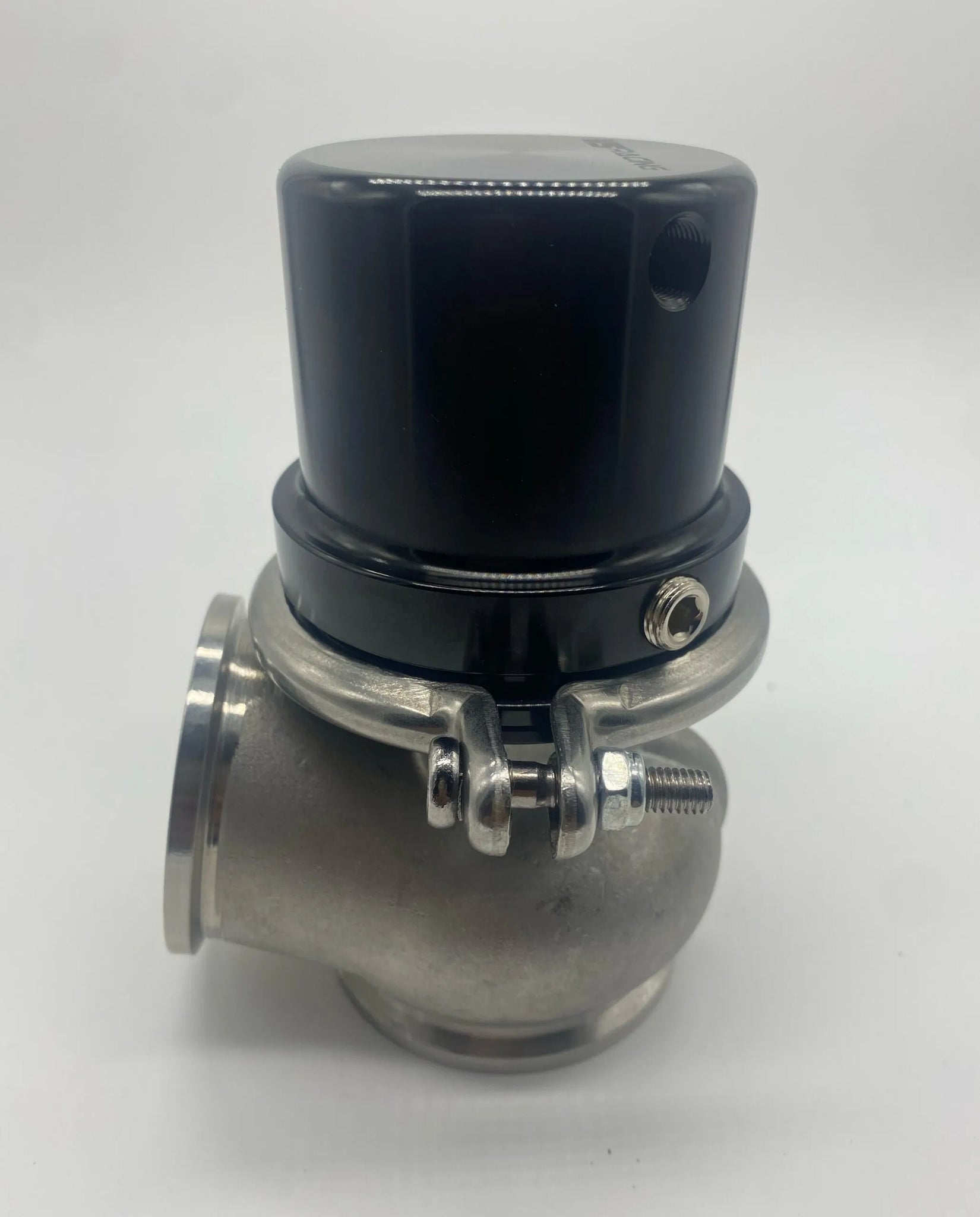

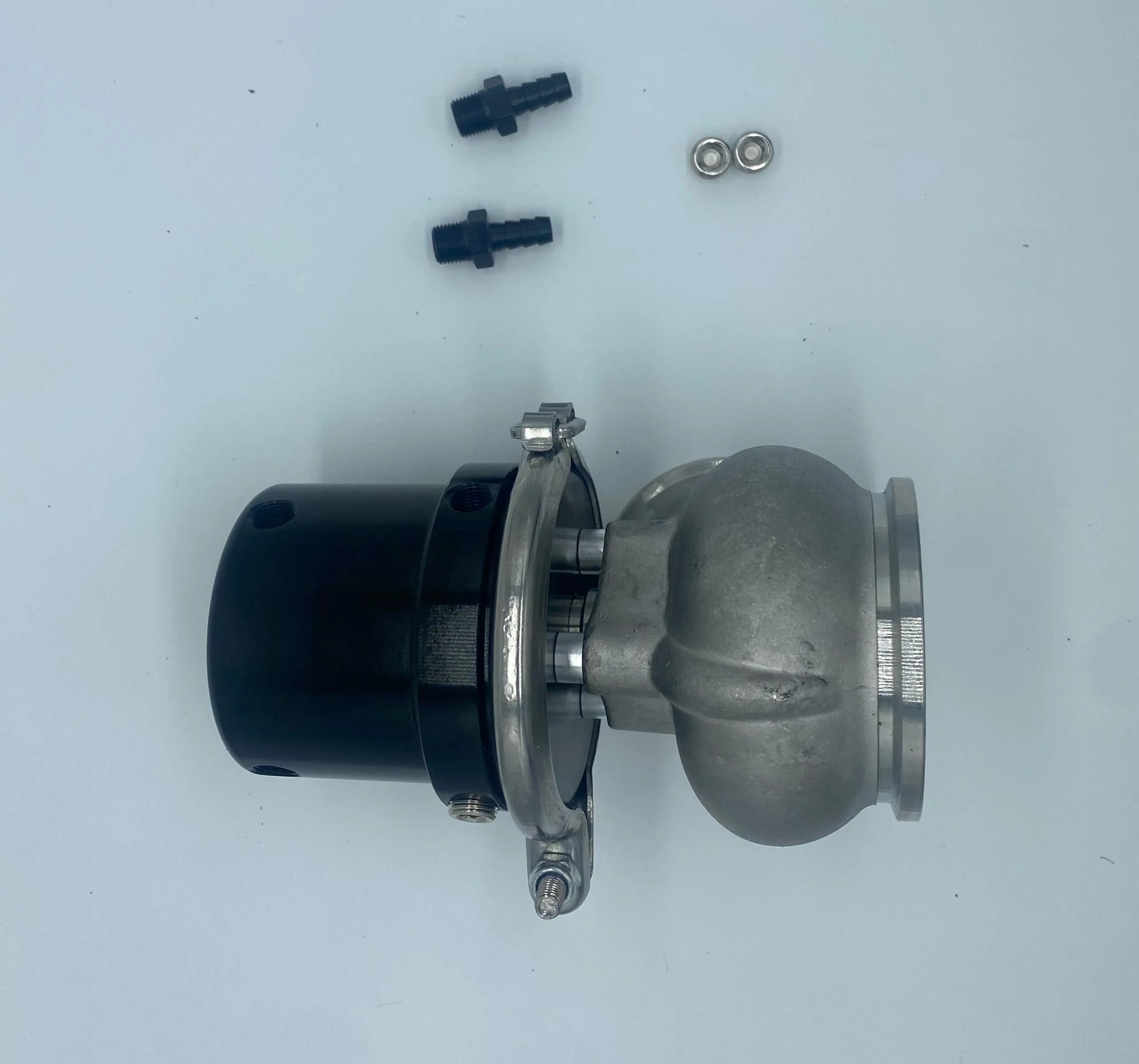

VSR 44mm Gen 3(Piston Based) Wastegate comes complete as a kit with flanges.
Base Spring Pressure is 6 outer spring and 5 inner spring 10.5 psi combined pre-installed
Spring available in box is 4psi usually used as single spring for C02 controlled situations.
Instructions for use
If you are using spring pressure – Hook you pressure source incoming usually from turbo to bottom port. You will have 2 ports to select from choose based on your best location and cap the other port. Leave one hole vented on the top and cap the other.
Electronic/Dome Pressure setup If you are using a solenoid, you will tee your input to the bottom coming from your pressure source. Output of your solenoid will go to either top port. You will cap the other top port if not being used for a dome pressure sensor.
