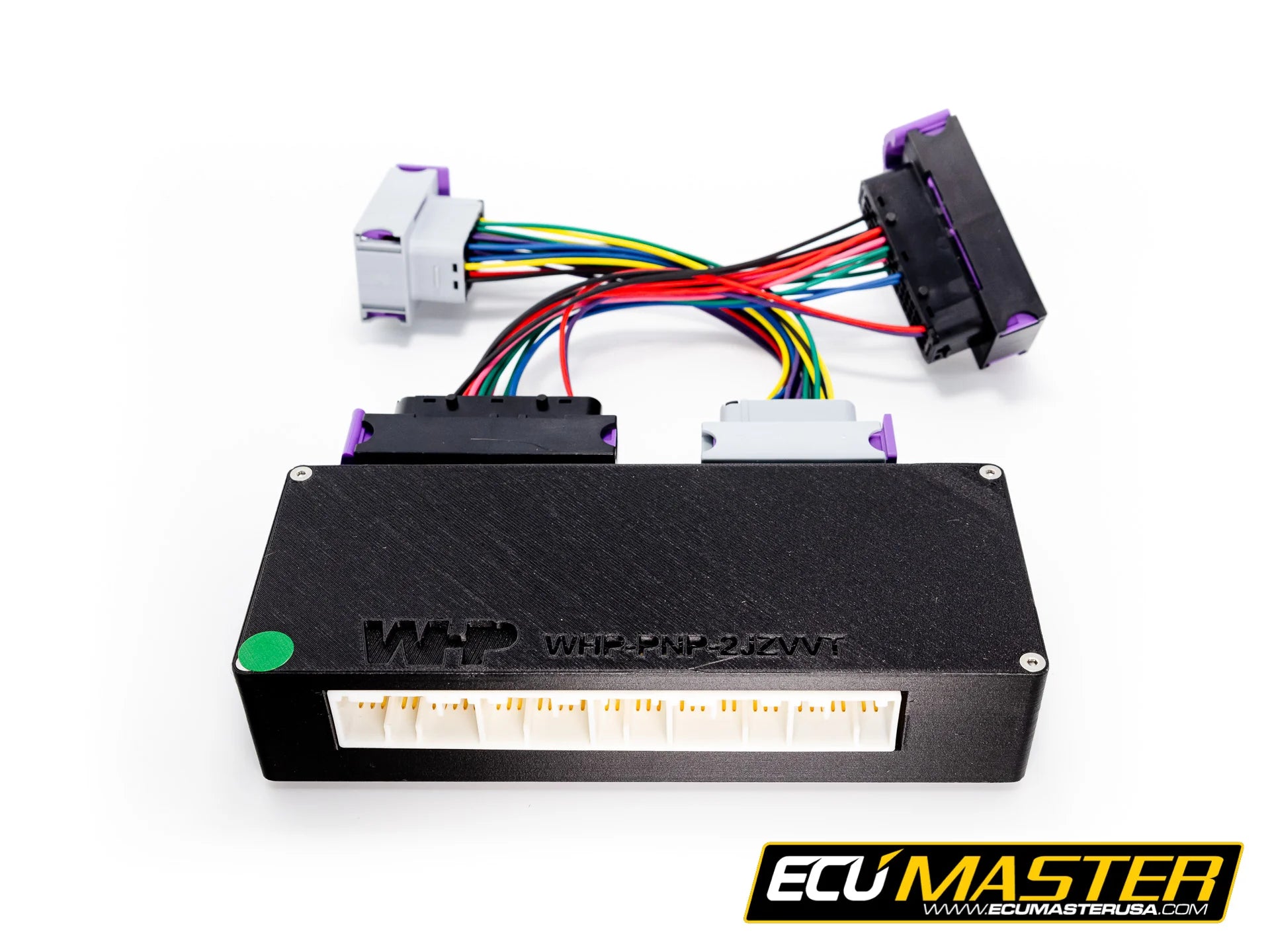

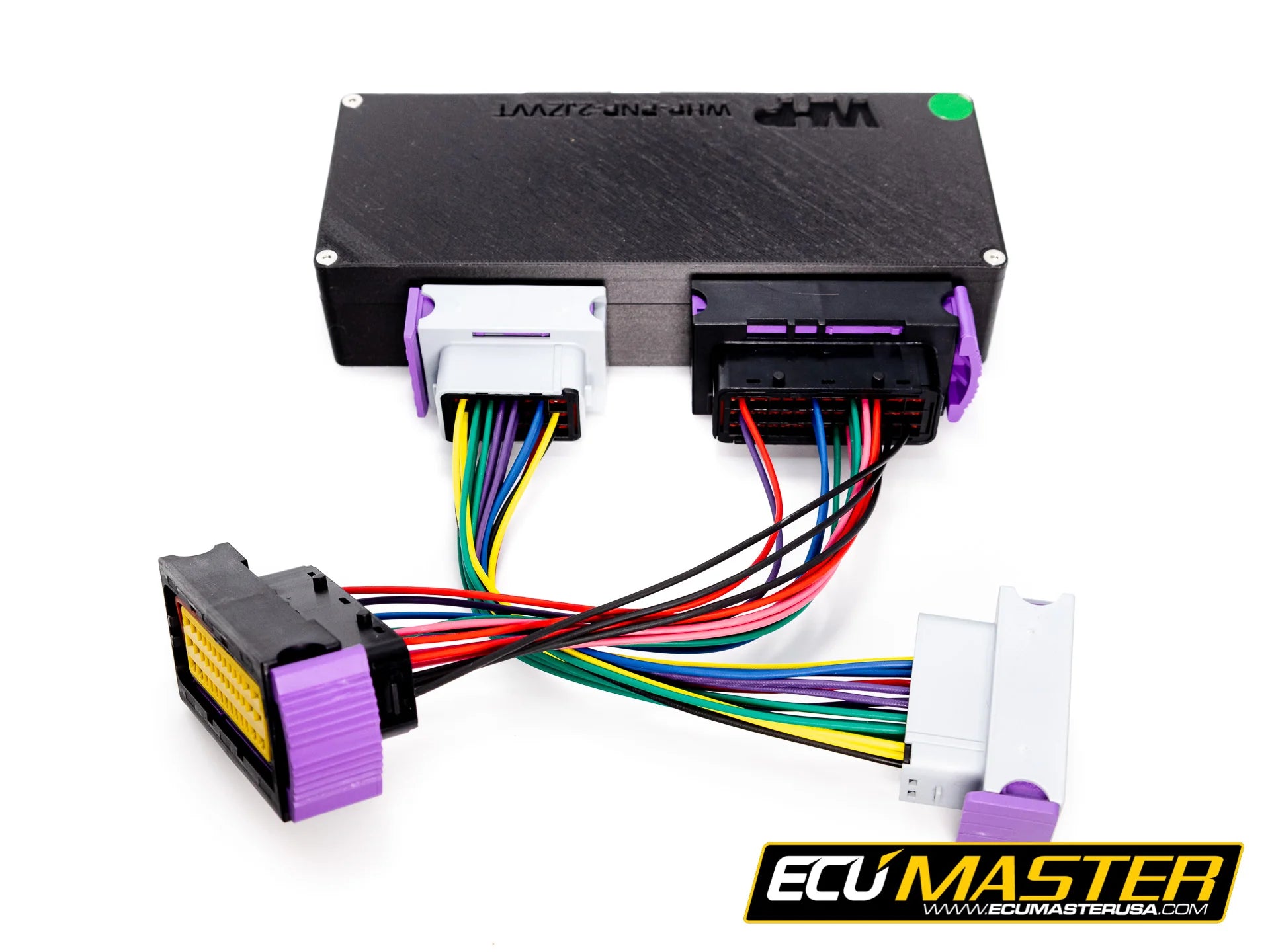

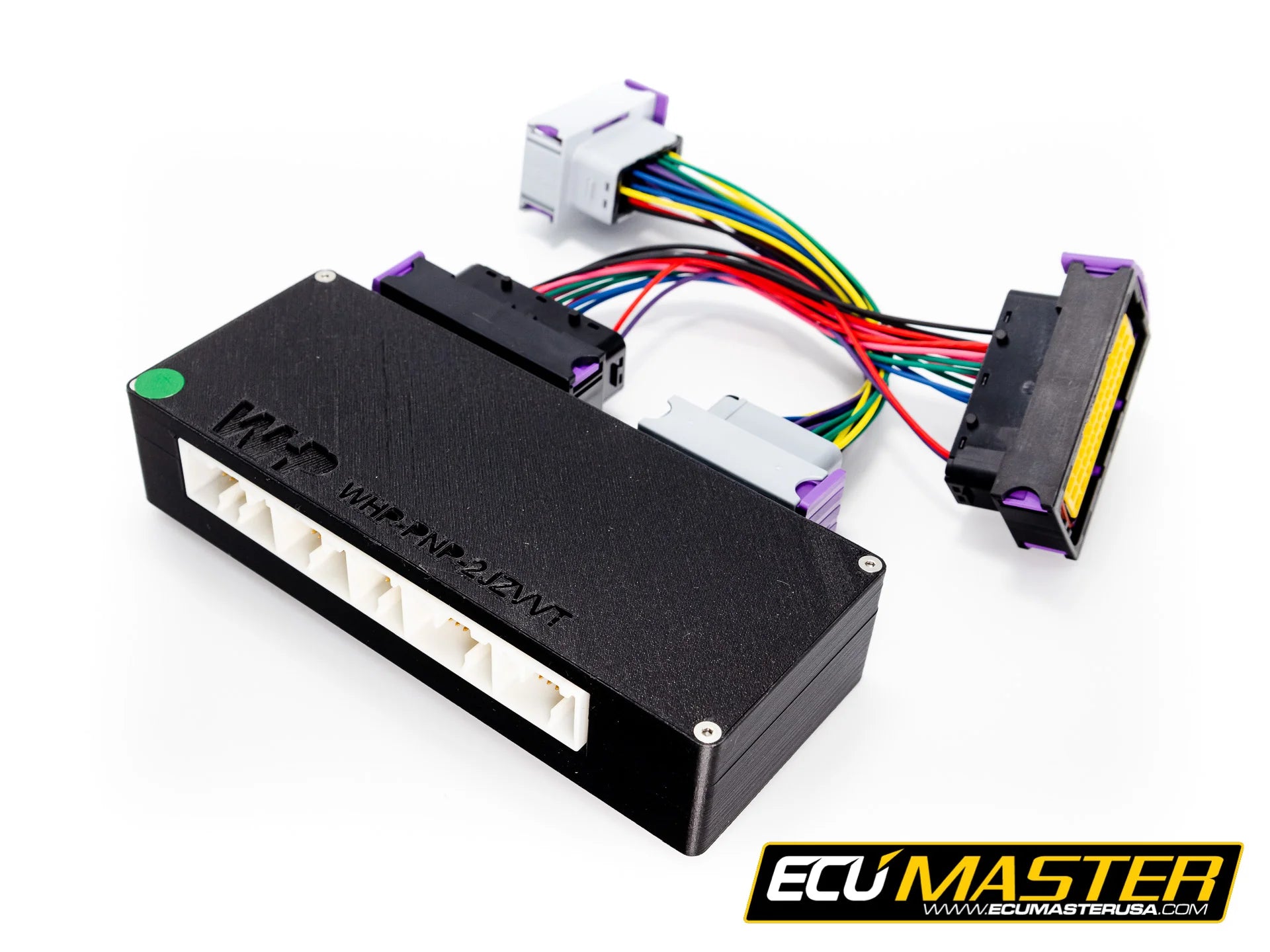

2JZ-GTE VVTI (JZS161) AND 1JZ-GTE VVTI (JZX110/JZS171) PNP FOR EMU BLACK
(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.
PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!
THE WAIT IS OVER!.
For years we've received requests for a VVTi 2JZ/1JZ Plug and Play adapter, and it's finally here. Non-VVTi motors are harder and harder to find, and the benefits of VVTi are now widely known, so we created a plug and play adapter to make your VVTi 2JZ/1JZ installation even easier. This adapter does NOT support the Toyota BEAN network (used for gauge cluster and HVAC in models like the IS300/GS300), so this adapter is primarily aimed at customers swapping VVTi 2JZ/1JZ engines into other chassis. Support was not added for the stock sequential turbo system, so if you wish to retain the OEM turbos then they'll need to be converted to true twin operation. This adapter supports the factory drive by wire throttle, and the Mass Airflow sensor is no longer needed. An air temperature sensor should be added. Factory camshaft and crankshaft sensors are supported, along with the factory coolant temperature sensor, throttle body, and more.
NOTE FOR 1JZ-GTE VVTI:
This 2JZ-GTE VVTi adapter will work with the (JZX110) 1JZ-GTE VVTi engine and wiring harness variant with the (5) ECU connectors on the harness.
The JZX100 VVTi has (4) ECU connectors. Please click on the following link for the full list 1JZ-GTE VVTi and Non VVTi adapters.
