ACT 04-20 WRX STI Mod Twin XX Race Kit Sprung Hub Torque Cap 1340ft/lbs Not For Street Use

(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.

PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!

ALSO, BECAUSE OF CURRENT TARIFF POLICIES IN THE UNITED STATES, IF YOUR PRODUCT IS COMING FROM INTERNATIONAL THERE MAY BE AN IMPORT DUTY THAT NEEDS TO BE PAID BEFORE RECEIVING YOUR PRODUCT. UNFORTUNATELY THIS IS OUT OF OUR CONTROL AND APOLOGIZE FOR ANY INCONVENIENCE.

  • This is a SPECIAL ORDER item and availability can vary, please contact us for an accurate timeframe of availability before purchase. Some items can take 30+ days from manufacturer to become available.***ANY SPECIAL ORDER PLACED WITHOUT CONTACTING US FIRST IS SUBJECT UP TO A 10% CANCELLATION FEE***

  • Manufacturer Part Number: T3R-S05
  • $1,925.00
    Unit price per
  • Save $452

Contact Us To Order

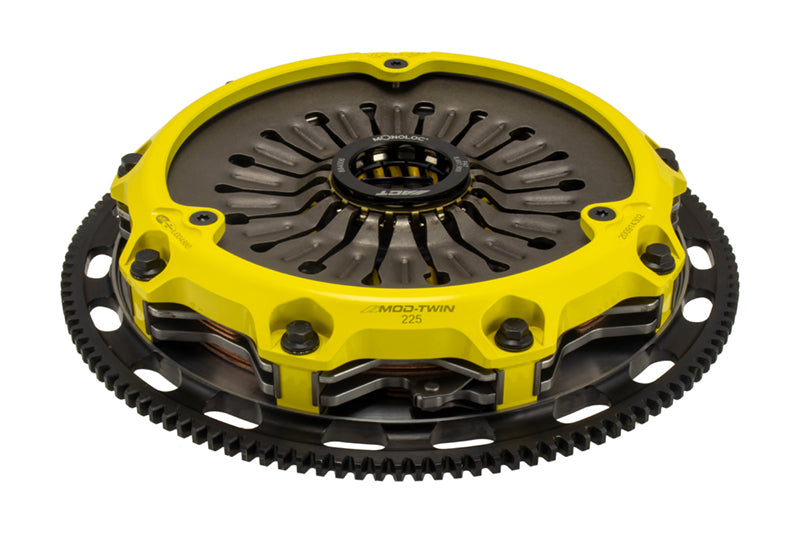

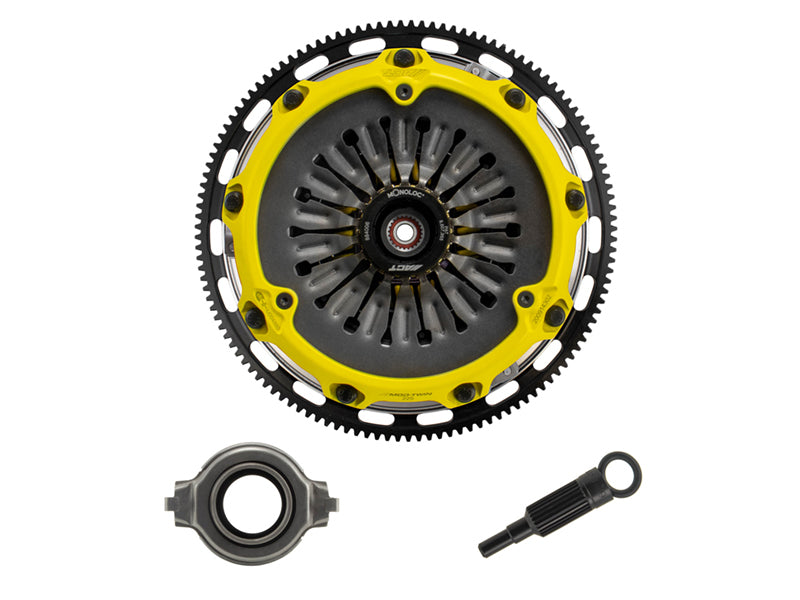

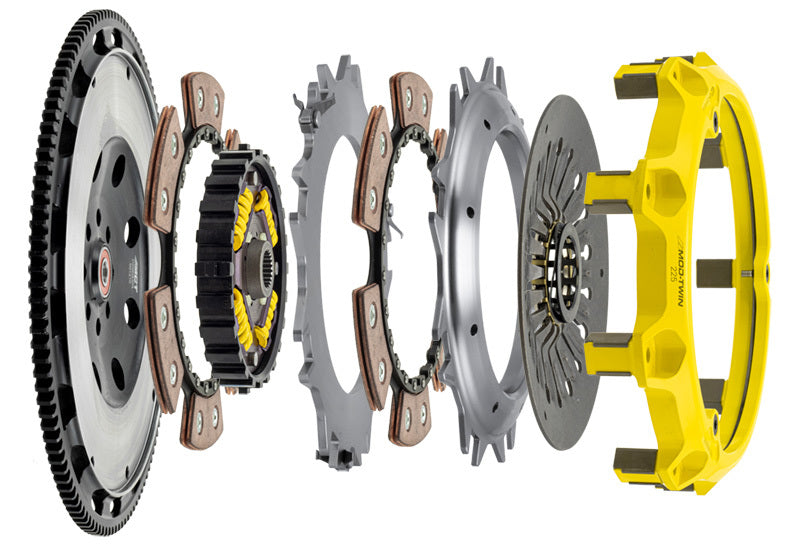

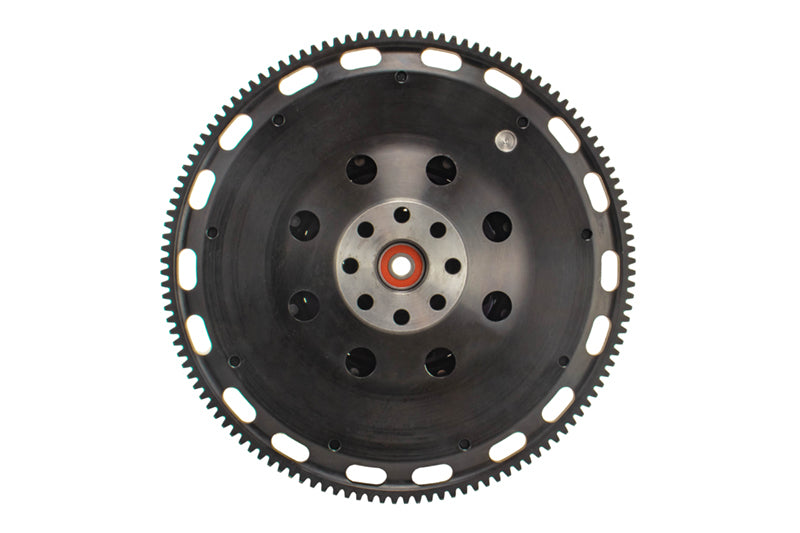

T3R-S05 Mod-Twin 225 XX Sprung Race Kit performs aggressive launches and smoother shifting in high powered AWD’s by combining twice the ceramic friction surfaces with an ultra-durable Mono-Drive sprung hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent pedal feel requiring moderate effort. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

This Part Fits:

Year Make Model Submodel
2004-2014 Subaru Impreza WRX STI
2007,2011-2014 Subaru Impreza WRX STI Limited
2010 Subaru Impreza WRX STI Special Edition
2015-2021 Subaru WRX STI Base
2015 Subaru WRX STI Launch Edition
2015-2021 Subaru WRX STI Limited
2019 Subaru WRX STI S209
2016 Subaru WRX STI Series.HyperBlue
2018 Subaru WRX STI Type RA
