ECUMASTER DIGITAL GEAR INDICATOR
(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.
PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!
ALSO, BECAUSE OF CURRENT TARIFF POLICIES IN THE UNITED STATES, IF YOUR PRODUCT IS COMING FROM INTERNATIONAL THERE MAY BE AN IMPORT DUTY THAT NEEDS TO BE PAID BEFORE RECEIVING YOUR PRODUCT. UNFORTUNATELY THIS IS OUT OF OUR CONTROL AND APOLOGIZE FOR ANY INCONVENIENCE.
The digital gear indicator is designed to work with a stock or aftermarket
ECU to display the current gear with an optional shift light.
Gear calculations are made based on vehicle speed and engine RPM
via OBD2 or CAN, or using a gearbox barrel position sensor.
The device is fully configurable via CAN BUS (communication, shift point
per gear,etc) and can be used with virtual any CAN BUS based ECU.

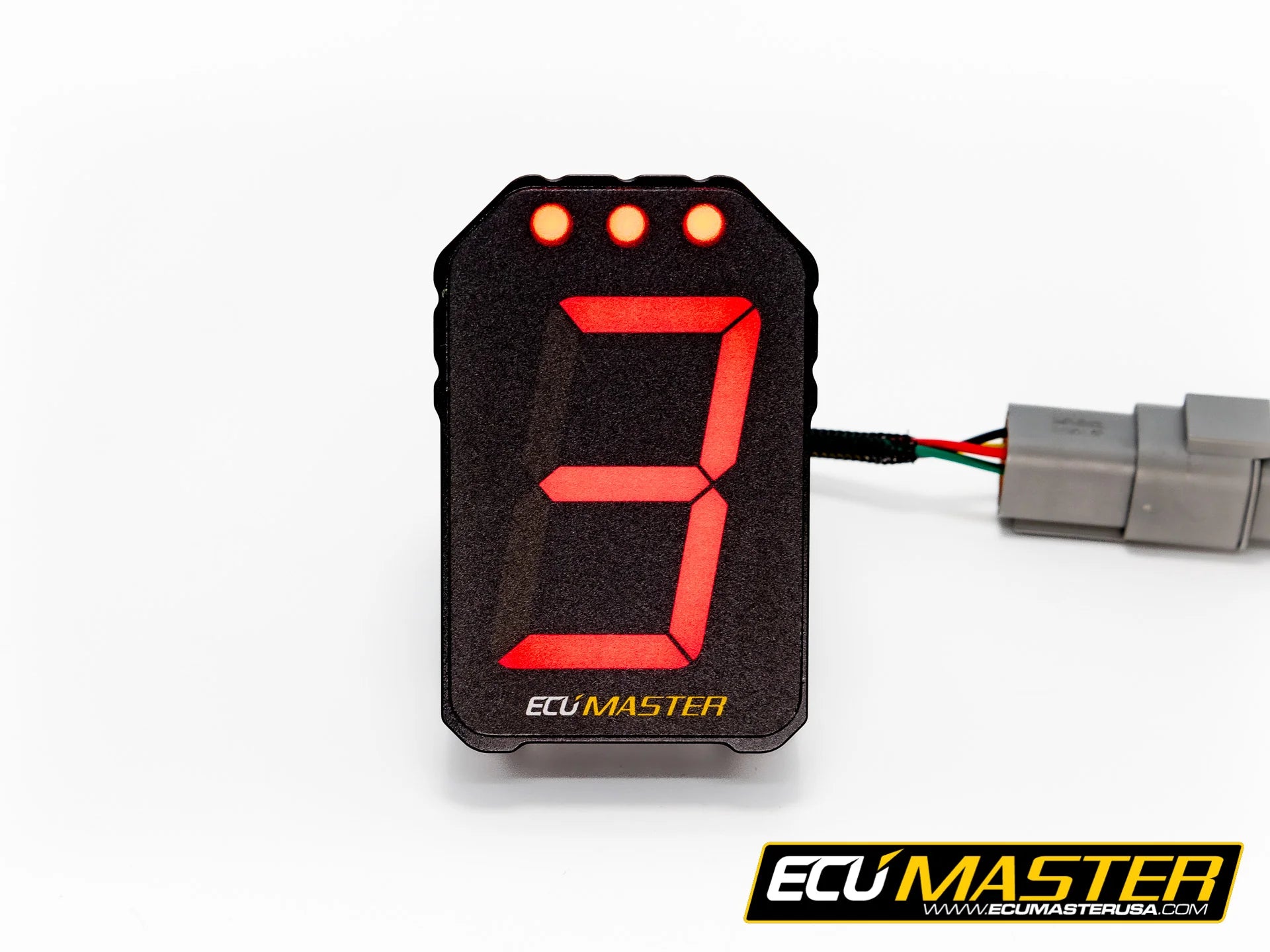

Thanks to the large and bright display, the indicated gear is readable
in all lighting conditions. Display brightness can be controlled via CAN
or by a potentiometer (when gearbox barrel position sensor is not
connected).
KEY FEATURES
•read gear from CAN, OBDII or analogue gear sensor
•3 RGB LED customizable shift light
•easy to read large display (size)
•configurable via CAN BUS
•free firmware upgrades
