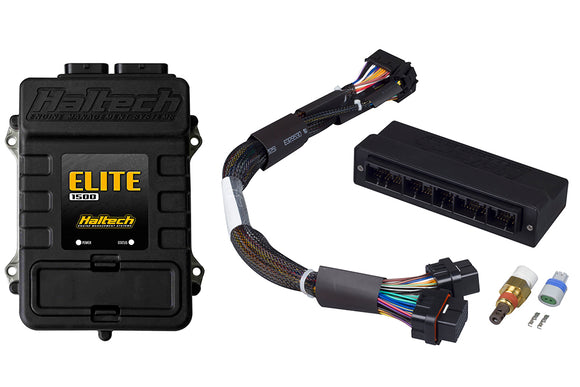

Haltech Elite 1500 + Mazda Miata (MX-5) NB Plug'n'Play Adaptor Harness Kit

Haltech Elite 1500 + Mazda Miata (MX-5) NB Plug'n'Play Adaptor Harness Kit

(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.

PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!

ALSO, BECAUSE OF CURRENT TARIFF POLICIES IN THE UNITED STATES, IF YOUR PRODUCT IS COMING FROM INTERNATIONAL THERE MAY BE AN IMPORT DUTY THAT NEEDS TO BE PAID BEFORE RECEIVING YOUR PRODUCT. UNFORTUNATELY THIS IS OUT OF OUR CONTROL AND APOLOGIZE FOR ANY INCONVENIENCE.

  • All ECU's/Accesories ship directly from Manufacturer, please contact us for availability and please allow additional time for proccessing and shipping.

SUITS: Mazda Miata (MX-5) NB ADM Special Edition (Factory Turbo), USDM Special Edition (Factory Turbo), VCT, Non-VCT (00-04 Aus, 01-05 USA), 3-plug, 3-row factory ECU. Manual transmission only.

HARNESS OVERVIEW
If you are using a factory harness and are after an easy ECU upgrade - this is a product for you. These adaptors plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.
  • A simple Haltech Plug'n'Play product that allows you to be up and running in just a few hours.
  • The quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.

ECU OVERVIEW
Featuring a robust, environmentally sealed waterproof case, drive by wire throttle control, intake and exhaust cam control, short term and long term map learning, knock control, and much more, the Elite 1500 ECU provides engine calibrators the tools they need to get the job done right. Alongside the Elite 1500 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user friendliness never seen before in an engine control package. Together they offer true cutting edge technology to tuners and performance enthusiasts worldwide.
  • Supports 1 to 12 cylinder engines
  • 2 rotor engines
  • Normally aspirated or forced induction
  • Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
  • Staged, sequential, semi sequential, batch or multipoint injection patterns
  • Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
  • Connect to a wide range of display dashes and expansion devices via CAN.
  • 4 x fuel injection outputs
  • 4 x ignition outputs
  • 12 x digital outputs
  • 10 x analogue voltage inputs
  • 4 x synchronised pulsed inputs
  • 3 x dedicated inputs (knock, ignition switch & onboard MAP Sensor)
  • 2 x dedicated engine position inputs with extensive trigger type support
  • Up to 45 channels of Input & Output (I/O) expansion (via CAN)
  • USB laptop communication (Windows)
  • ESP Calibration Software - intuitive and easy to use
