Link 4 Bar MAP Sensor (MAP4)
(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.
PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!
ALSO, BECAUSE OF CURRENT TARIFF POLICIES IN THE UNITED STATES, IF YOUR PRODUCT IS COMING FROM INTERNATIONAL THERE MAY BE AN IMPORT DUTY THAT NEEDS TO BE PAID BEFORE RECEIVING YOUR PRODUCT. UNFORTUNATELY THIS IS OUT OF OUR CONTROL AND APOLOGIZE FOR ANY INCONVENIENCE.

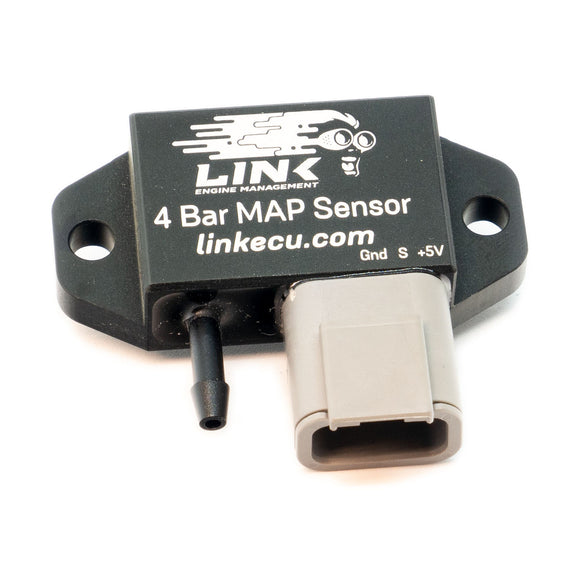

The Link 4 Bar MAP sensor reads up to 4 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 3.0 Bar (or 44psi) of boost pressure. The wiring pinout for this sensor is marked directly on the sensor.
- Includes 3-pin Deutsch DTM connector kit
- Easy to mount via 2 bolt holes. Note that the sensor should be mounted higher than the intake manifold port that the hose connects to.
- Compact aluminium enclosure
- Mechanical connection via 4mm (3/16″) hose connector nipple.
- Using Link G4/G4+/G4X ECU’s just select the MAP sensor type in PC Link as ‘Link 4 Bar’
