LINK MXG Strada 7" Dash - Race Edition
(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.
PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!
ALSO, BECAUSE OF CURRENT TARIFF POLICIES IN THE UNITED STATES, IF YOUR PRODUCT IS COMING FROM INTERNATIONAL THERE MAY BE AN IMPORT DUTY THAT NEEDS TO BE PAID BEFORE RECEIVING YOUR PRODUCT. UNFORTUNATELY THIS IS OUT OF OUR CONTROL AND APOLOGIZE FOR ANY INCONVENIENCE.

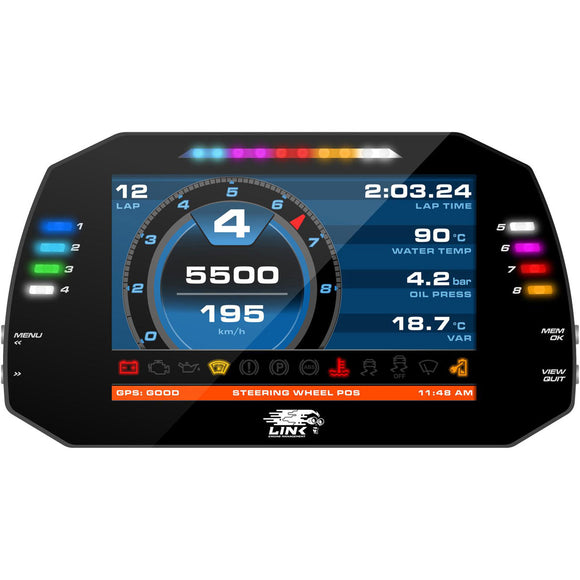

Link MXG Strada 7” dash, powered by AIM.
The Link MXG Strada Race Edition is a full colour, 7-inch dash display with 10 RGB shift lights and eight customizable alarm LED lights. The dash is pre-configured to work with all Link G4+/G4X Wire-In and Plugin ECU's. See features tab for more information.
This listing is for the 'Race edition', please see the 'Street edition' if you are looking for a dash for street purposes. This dash is also available in a 5” version.
The Link MXG Strada Race Edition dash features customisable shift lights, eight flexible alarm LED’s and a high contrast 7” TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.
The 10 multi-coloured RGB shift lights on the MXG Strada can be customised to your liking to define the RPM threshold for each single gear.
The same flexibility applies to the eight configurable RGB alarm LED's. You can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information (GPS module available). You choose conditions and colours and you can select a solid alarm or flashing one and the flashing frequency. It is also possible to configure an accompanying text message along with the alarm priorities.
The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information reading from the ECU such as RPM, speed, water temperature, oil pressure and much more.
The Link MXG connects directly to your Link ECU via the pin kit and wiring provided in the box.
The dash can be personalised via Link ECU PC Link and Aim Technologies Race Studio 3 software.
The Link MXS connects directly to your Link ECU via the pin kit and wiring provided in the box.
To use with plugin ECU’s - CANPCB and CANF connectors will be required (Purchased separately).
Included in the box:
Link MXG 1.2 Strada
USB cable
14 pin standard wiring
23 pin connector + contacts
Software installation CD
GPS module available separately.
Power consumption: 400 mA
Dash Dimensions: 237×127.6×26 mm
Weight: 950 g
Waterproof: IP65
| Display | 7” TFT |
| Resolution | 800x480 pixels |
| Contrast | 1000:1 |
| Brightness | 700cd/m2 - 1,100 Lumen |
| Ambient light sensor | Yes |
| Alarm LEDs | 8 RGB freely configurable |
| Shift lights | 10 integrated freely configurable RGB LEDs |
| CAN connections | 2 |
| ECU connections | CAN |
| Analog inputs | 8 fully configurable, max 1,000 Hz each |
| Digital inputs | 1 speed input, coil RPM input |
| Digital outputs | 1 (1 A max) |
| Second CAN | Yes |
| Body | Anodized Aluminum |
| Pushbuttons | Metallic |
| Connectors | 2 AMP connectors + 1 Binder connector |
| Power consumption | 400 mA |
| Dimensions | 237x127.6x26 mm |
| Weight | 950 g |
| Waterproof | IP65 |
