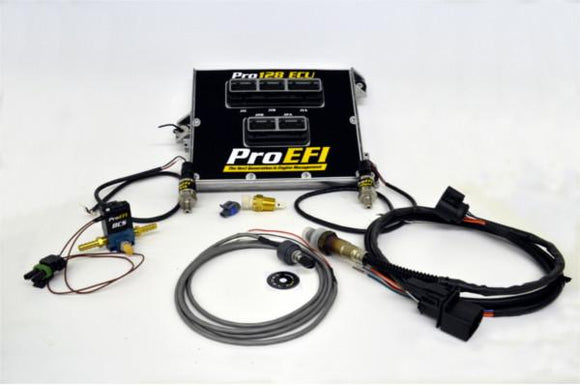

PRO EFI 128 ECU KIT FOR TOYOTA SUPRA
(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.
PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!
Product Description
The Pro128 holds the record for Bang for the buck. Check out these features, and check out the environmental specs on this unit. These units are the most reliable ECU’s you will find at ANY price!
| Processor | The Pro128 uses the superfast MPC565 56mhz Processor |
| Injectors | 12 Peak n Hold – with calibratable peak time. 6 – 6/2 amp, and 6 3/1 amp. |
| Coils | 16 |
| TPS | Yes – Adaptive |
| Coolant Temp | Yes |
| Air Temp | Yes |
| Map Sensor | Yes – Unlimited Range |
| MAF Sensor | Yes – Frequency and Voltage |
| Idle Control | Pulse Width and Stepper motor – Adaptive |
| Wideband O2 | 2 Built in UEGO controllers (External capable) |
| Cam | Yes – Hall/VR capable |
| Crank | Yes – Hall/VR capable |
| Variable Cam | Yes 2 cam capable |
| Knock Channels | 2 Programmable frequency and event with individual cylinder notification |
| Flex Fuel Capability | Add a Flex fuel sensor, and the computer automatically adjusts fuel, timing, and boost based on Ethanol content! Multiple Failsafes! |
| Nitrous Control | 4 stages progressive multiple event trigger control range. V.E. based fueling**** |
| Boost Control | Most comprehensive Antilag on the market. Multiple control strategies.*** |
| Rolling AntiLag Control | Speed based capture (no preset rpm or speed…press it and go) |
| Rev Limiters | Multiple – Burnout, Stage, TwoStep, Rolling Antilag (True RPM capture at ANY Speed) All tied to separate boost targets! |
| Traction Control | Multiple control strategies.*** |
| Launch Control | Comprehensive Launch Control Strategies to get the most powerful cars down the nastiest tracks! |
| Trans Brake Staging Control | Controls the final staging to the second bulb via trans brake ‘bump’ in |
| Valet Modes | Two Stages – Tied to Fault management – Power Reduction, Speed limited etc.. No laptop connection required to active or deactivate, calibratable procedure |
| Drive Off Assist | Drive Off limiters to help with light rotating mass and grabby clutches |
| Fuel Pump Control | Yes* |
| Analog Inputs | 34* Fuel Pressure monitoring and feedback correction, Oil Pressure, Exhaust Backpressure Feedback and correction, and much more. |
| Low Side Outputs | 10 total – 8-10 amp capable – 2-2 amp capable* |
| Tach | Yes – Software configurable |
| Digital Inputs | 8 channels – Fully programmable pre configured |
| High Current Bridges | 3 channel sets – Used for Stepper motor control, or Electronic Throttle Control |
| Speed Inputs | 2 |
| Drive By Wire | Yes – Dual capable* |
| Fault Coding Safety | Yes** |
| MIL (CEL) | Yes – Malfunction indicator with fault codes |
| Main Relay Control | Yes |
| 5v Ref | 2 locations |
| Sensor Grounds | 2 locations |
| Key Switch Power | Yes |
| Permanent Power | Yes |
| Battery Backup | No – Not needed – Stored permanently! |
| Chassis Ground | 4 Locations |
| Can Channels | 2 Channels |
| Serial Connection | Yes***** |
| RS485 Connection | Yes***** |
| Internal Memory | Limited to Fault logic |
| USB Direct Connection | No |
| Laptop Connection | USB |
