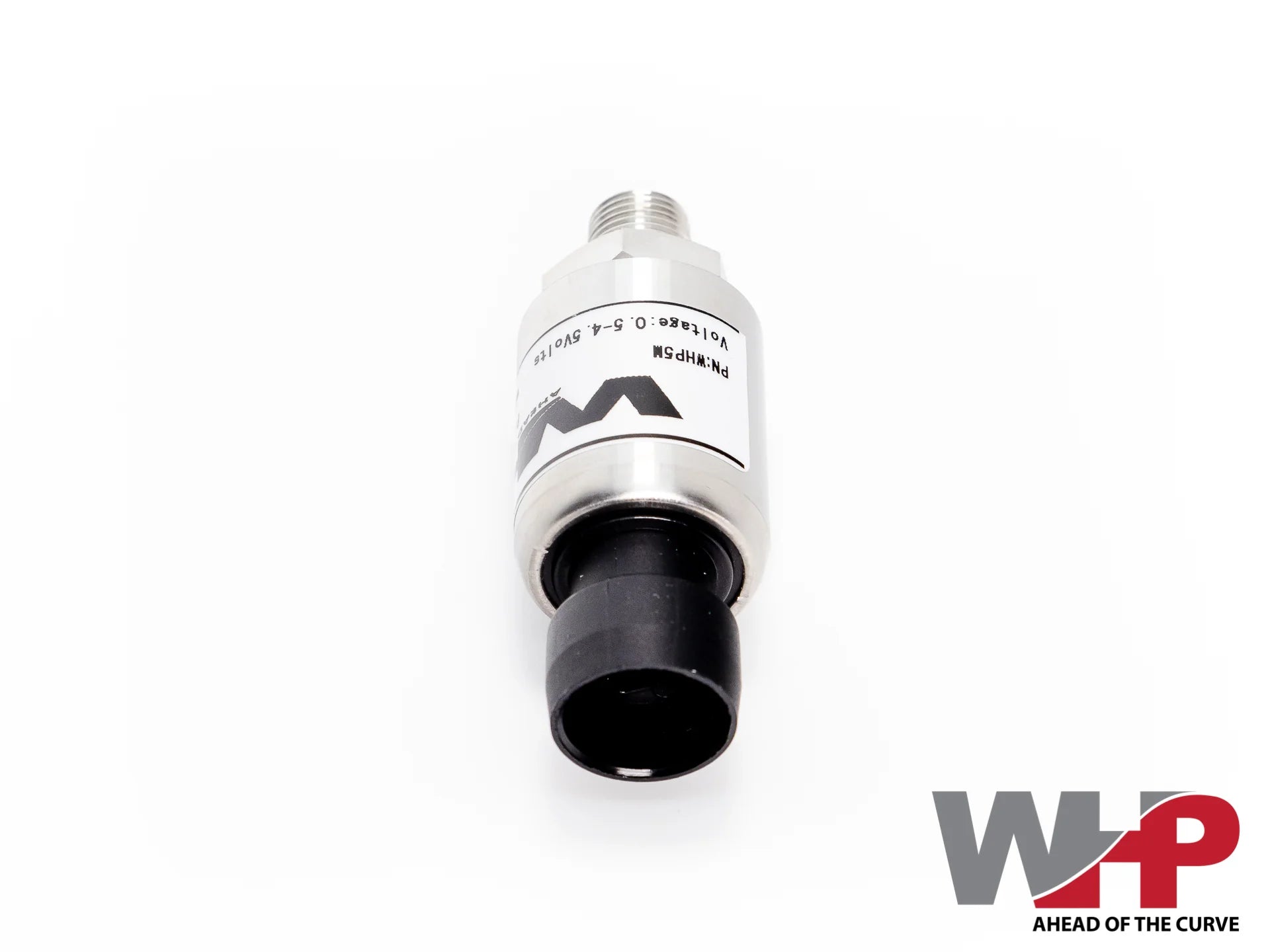

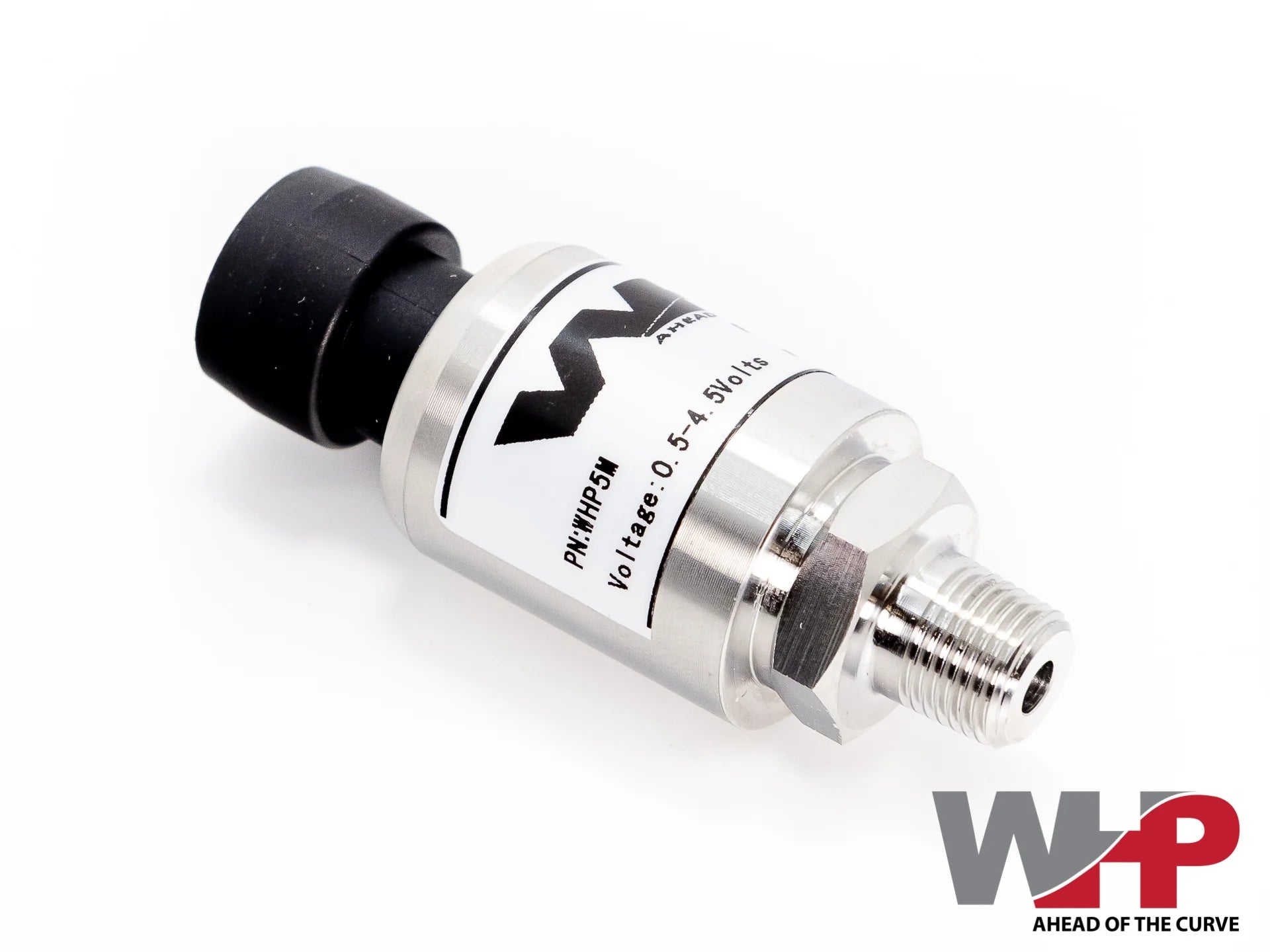

WHP 5 BAR MAP SENSOR, 1/8 NPT
(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.
PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!
ALSO, BECAUSE OF CURRENT TARIFF POLICIES IN THE UNITED STATES, IF YOUR PRODUCT IS COMING FROM INTERNATIONAL THERE MAY BE AN IMPORT DUTY THAT NEEDS TO BE PAID BEFORE RECEIVING YOUR PRODUCT. UNFORTUNATELY THIS IS OUT OF OUR CONTROL AND APOLOGIZE FOR ANY INCONVENIENCE.
WHP 5 BAR MAP SENSORS are ideally suited for high boost MAP sensor applications, providing resolution up to approximately 58 PSI of boost pressure.

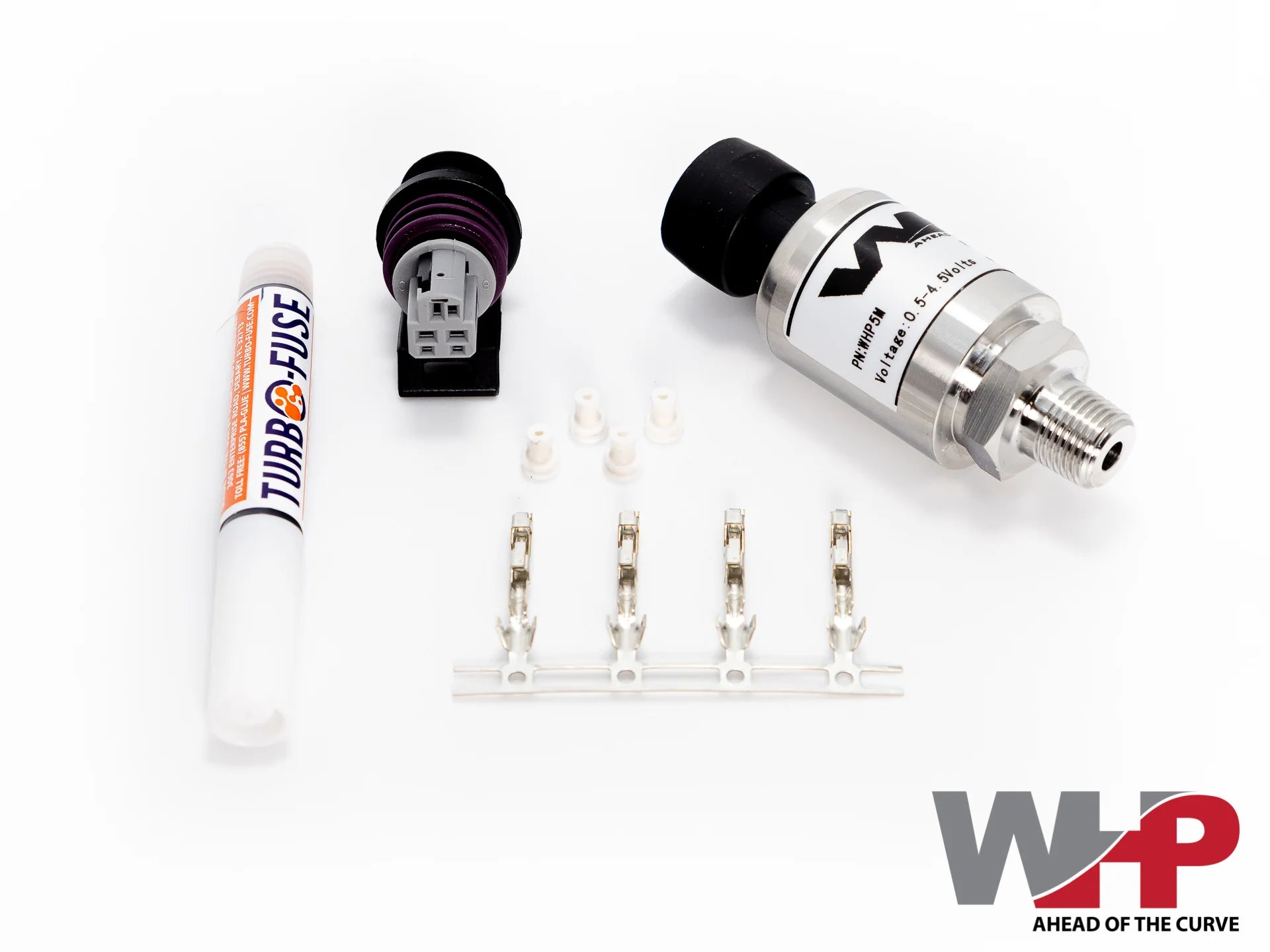

WHP pressure sensors are the perfect companion to any ECU. WHP sensors are built to custom specifications in an ISO9001 Certified facility. The latest developments in sensor technology are used to create an extremely compact sensor, easing installation in cramped engine bays and chassis. All sensors are compensated for temperature over a broad range and accurately measure pressure within .5%. Sensor bodies are crafted from 304 Stainless Steel and feature CNC cut threads and wrench flats for reliable sealing and trouble-free installation. Each sensor is packaged with a Delphi connector kit, installation instructions, and a tube of thread sealing compound.
1/8 NPT Threads
Pressure range: 0-5 Bar Absolute Pressure (0-72 PSIA)
